Problem Description

I used to back up Node-RED flows by copying ~/.node-red/flows_xxx.json and keeping multiple versions. That was annoying, and even comparing unformatted JSON with tools like Beyond Compare was a mess.

Solution: Pretty-Print JSON

I found that by changing the setting in ~/.node-red/settings.js, the flows_xxx.json file can be saved in a pretty-printed format.

vim ~/.node-red/settings.js
# Search for flowFilePretty, find the line, and uncomment it

Solution: Enable Git Support

1. Enable project support

vim ~/.node-red/settings.js
# Find projects: {enabled: false} and change it to enabled: true

2. Restart Node-RED

ls -ll ~/.node-red/
# You will see a new projects/ directory

3. Revisit the Node-RED web UI, such as 127.0.0.1:1880 Follow the prompts to create or clone a project.

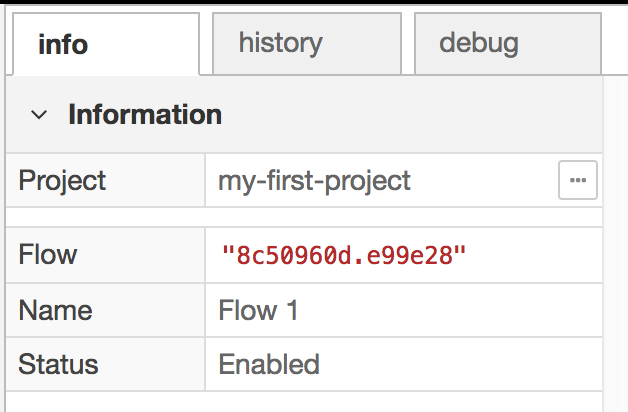

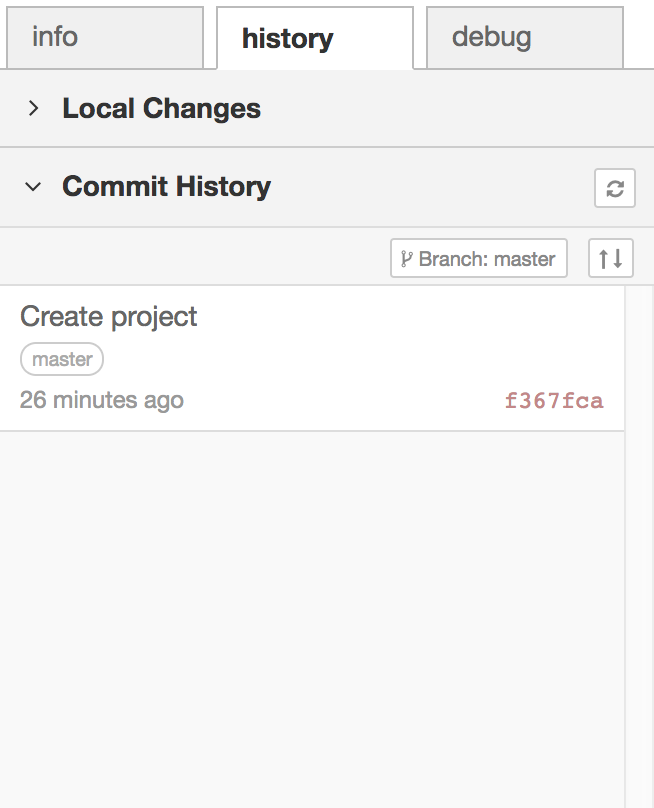

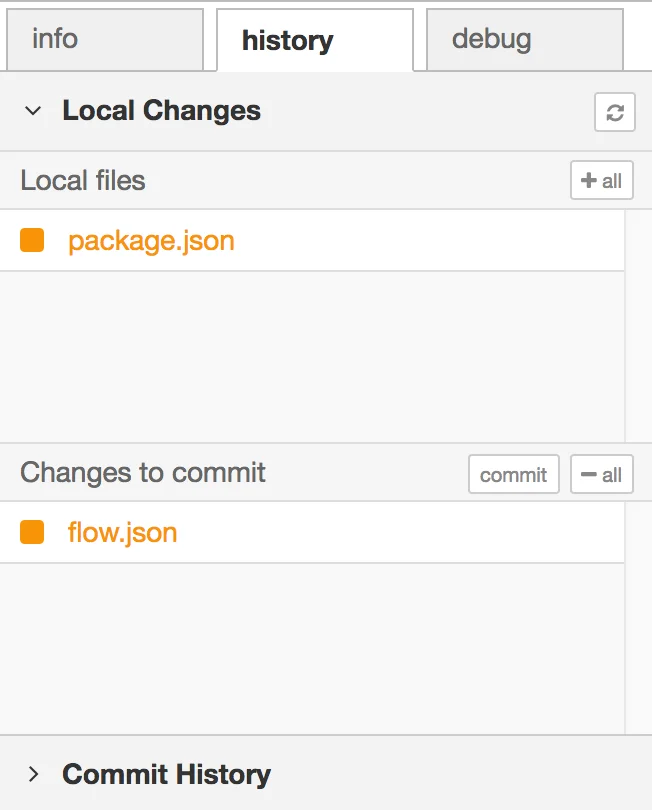

4. Sidebar information The info page above shows the current project name. The history page above shows the changed files under Local Changes. Click a file name to see the detailed node changes. Clicking + is equivalent to git add filename; files under Changes to commit have been added but not committed. After clicking commit, you enter a description, which is effectively git commit -m "description". The Commit History page shows commit history. If a remote repository is configured, you can also see how many commits the local branch is ahead of the remote, and you can push or pull here.
